Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 23.1 Inch |
|---|---|---|---|
| Resolution: | 1600×1200 | Display Mode: | MVA, Normally Black, Transmissive |
| Active Area: | 470.4×352.8 Mm | Outline: | 530×432.8×33.5 Mm |
| High Light: | industrial lcd screen,industrial lcd panel |
||

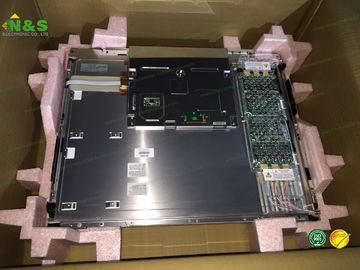

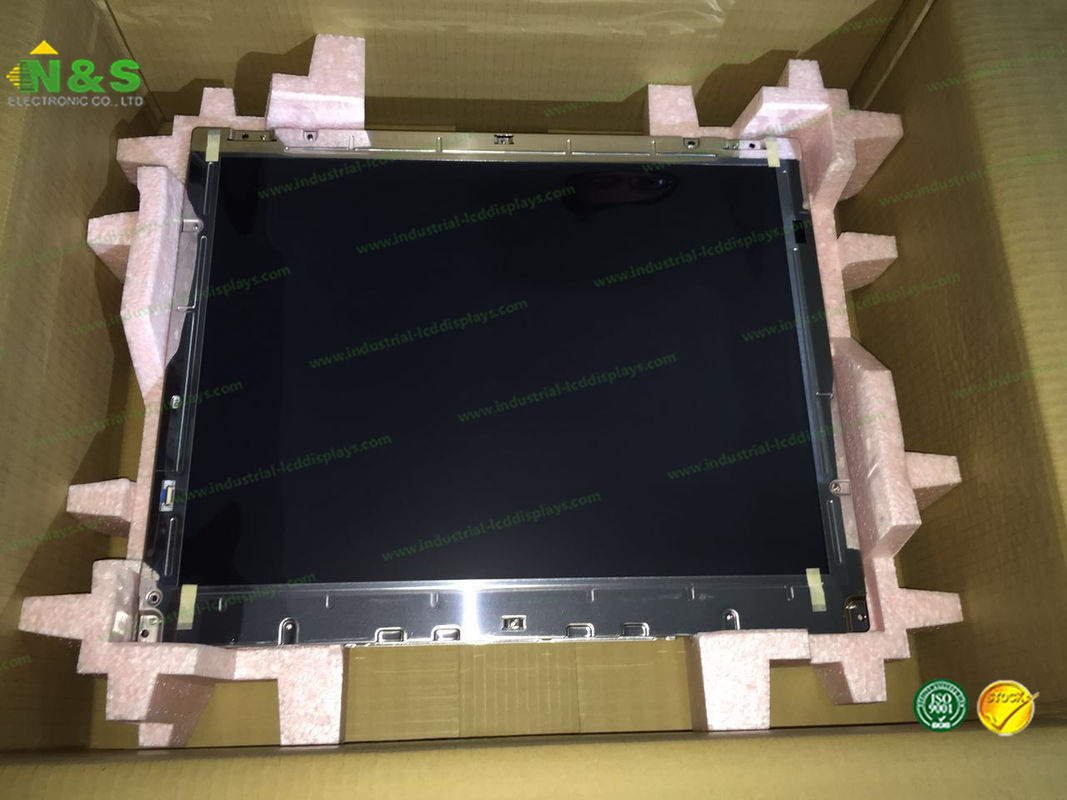

Normally Black LQ231U1LW01 23.1 inch, 1600×1200 high resolution,Surface Antiglare (Haze 25%), Hard coating (3H)
LQ231U1LW01 Basic Information
| Panel Model | LQ231U1LW01 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,23.1 inch, 1600×1200 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | FLC59UXC8V-02A |
| Operating Temperature | 0 ~ 45 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | RoHS from Fe. 2006 |
LQ231U1LW01 Mechanical Features
| Dot Resolution | 1600(RGB)×1200 (UXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 86 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.098×0.294 mm (H×V) |
| Pixel Pitch | 0.294×0.294 mm (H×V) |
| Weight | 5.50Kgs (Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 470.4×352.8 mm (H×V) |
| Bezel Area | 476.6×359.0 mm (H×V) |
| Outline Dimension | 530×432.8 mm (H×V) |
| Outline Depth | 32.5 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4-Ф4.5) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
LQ231U1LW01 Optical Features
| Display Mode | MVA, Normally Black, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Response Time | 20/10 (Typ.)(Tr/Td); 15 (Typ.)(G to G) |
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33 (Max.)(9 Points) |
| Sunlight Readable | N |
