Product Details:
|
| Panel Type: | LTPS TFT-LCD | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 (XGA) | Display Mode: | TN, Normally White, Transmissive |
| Brightness: | 200 Cd/m² (Typ.) | Display Color: | 262K (6-bit) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

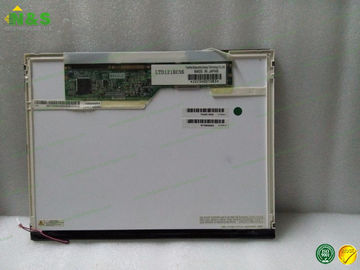

LTD121EC5S TFT LCD Module Normally White 12.1 inch, 1024×768 with 245.76×184.32 mm Active Area
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Packing & Delivery for our LCD Screen Panel Replacements:
LTD121EC5S Basic Information
| Panel Model | LTD121EC5S |
| Panel Brand | Toshiba Matsushita |
| Descrition | LTPS TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LTD121EC5S Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 265g (Typ.) |
| Active Area | 245.76×184.32 mm (H×V) |
| Bezel Area | 250.4×188.8 mm (H×V) |
| Outline Dimension | 261×199 mm (H×V) |
| Outline Depth | 5.0 (Max.) mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LTD121EC5S Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 25/25 (Max.)(Tr/Td) |
| Viewing Angle | 30/30/10/20 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| Sunlight Readable | N |
