Product Details:
|
| Panel Type: | LTPS TFT-LCD | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 800×600 | Display Colors: | 262K (6-bit) |
| Active Area: | 246×184.5 Mm | Outline: | 278.3×209×11 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||

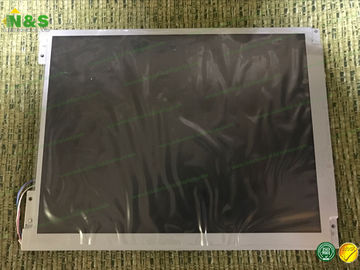

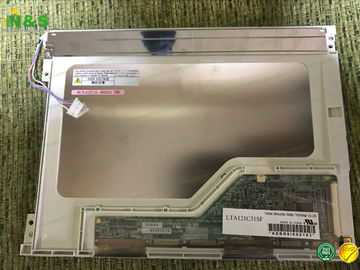

LTA121C31SF LTPS TFT-LCD Panel Module ,12.1 inch, 800×600 for Industrial Applicatiion panel
LTA121C31SF Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 82 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch | 0.3075×0.3075 mm (H×V) |
| Weight | 680g (Typ.) |
| Active Area | 246×184.5 mm (H×V) |
| Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dimension | 278.3×209 mm (H×V) |
| Outline Depth | 11.0 (Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.4) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LTA121C31SF Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 8/17 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/50/50 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable | N |
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD023F3N1-A01 | HannStar | 2.3" | 320×240 |
| HSD018F1N9-A01 | HannStar | 1.8" | 128×160 |
| LC650EGY-SHM1 | LG Display | 65" | 3840×2160 |
| LC650DUY-SGM1 | LG Display | 65" | 1920×1080 |
| BS053HDG-N50-6200 | BOE | 5.3" | 720×1280 |
| ST5461D02-2 | CSOT | 55" | 3840×2160 |
| H520DAN01.0 | AUO | 5.2" | 1080×1920 |
| CLAN070NJ01 CW | CPT | 7.0" | 1024×600 |
| HV550QUB-B10 | BOE | 55" | 3840×2160 |
| TL050JGXP01 | Tianma | 5.0" | 720×1280 |
