Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 15.0 Inch |
|---|---|---|---|
| Resolution: | 1024*768 | Active Area: | 304.1×228.1 Mm |
| Outline: | 331.6×254.76×13 Mm | Frequency: | 60Hz |
| Highlight: | sharp lcd display panels,sharp lcd screen |
||

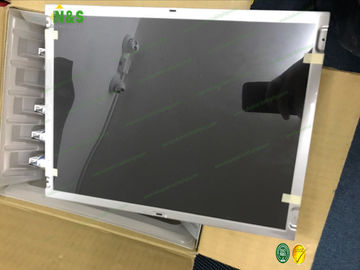

LQ150X1LW72 Basic Information
| Panel Model | LQ150X1LW72 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -25 ~ 60 °C |
LQ150X1LW72 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.35Kgs (Max.) |
| Surface | Antiglare (Haze 42%), Hard coating (2H), Antireflection |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 307.2×231.1 mm (H×V) |
| Outline Dimension | 331.6×254.76 mm (H×V) |
| Outline Depth | 12.5±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.2, 2-R2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
