Product Details:
|
| Panel Size: | 7.9 Inch | Panel Model: | LQ079L1SX01 |
|---|---|---|---|
| Resolution: | 1536(RGB)×2048 (QXGA) | Panel Type: | IGZO TFT-LCD |
| Contrast Ratio: | 1000:1 (Typ.) | Frequency: | 60Hz |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) | Input Voltage: | 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

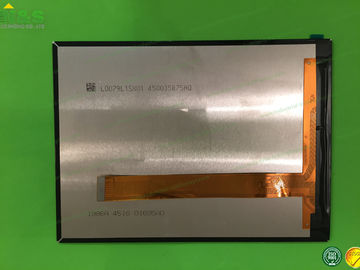

New and Original 1536×2048 LQ079L1SX01 LG LCD Panel 7.9 inch 125.55×171.3×3.15 mm Outline
Trade Terms:
Payment terms: 100% by T/T when order confirmed
Lead time: 2-5 working days according to the order quantity
Sample lead time: within 3 working days after we get payment.
The price based on FOB Shenzhen,we will offer best discount according to order quantity.
Warranty:offer free spare parts within ONE year.
Offer OEM service for batch orders,to print logo and design box.
General Features
Panel Model: LQ079L1SX01
Panel Brand: SHARP
Descrition: IGZO TFT-LCD ,7.9 inch, 1536×2048
Panel Type: IGZO TFT-LCD
Display Mode: Normally Black, Transmissive
Active Area: 119.808×159.744 mm
Outline: 125.55×171.3×3.15 mm
Contrast Ratio: 1000:1 (Typ.)
Display Colors: 16.7M (8-bit) , CIE1931 70%
Response Time: 35 (Typ.)(Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 6S4P WLED Without Driver
Signal Interface: MIPI (2 ch, 4 data lanes) , 50 pins
Input Voltage: 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN)
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LG 1.3 Circular P-OLED | LG Display | 1.3" | 320×320 |
| LH300WQ1-ED01 | LG Display | 3.0" | 240×400 |
| LB050S01-RD02 | LG Display | 5.0" | 800×600 |
| LB050S01-RD01 | LG Display | 5.0" | 800×600 |
| LC430DUY-SHA3 | LG Display | 43" | 1920×1080 |
| LD490EPY-SHP1 | LG Display | 49" | 1920×1080 |
| LD550DPY-SHP1 | LG Display | 55" | 1920×1080 |
| LC490EGY-SHM3 | LG Display | 49" | 3840×2160 |
| LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Mechanical Features
| Dot Resolution | 1536(RGB)×2048 (QXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 325 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.026×0.078 mm (H×V) |
| Pixel Pitch | 0.078×0.078 mm (H×V) |
| Weight | 65g (Typ.) |
| Active Area | 119.808×159.744 mm (H×V) |
| Outline Dimension | 125.55×171.3 mm (H×V) |
| Outline Depth | 1.95/3.15 (Typ./Max.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Without |
