Product Details:
|
| Panel Model: | LD750DGN-FKH1 | Panel Brand: | LG Display |
|---|---|---|---|
| Descrition: | 3840×2160 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 1649.66×927.936 Mm | Outline: | 1675.2×953.6×86.2 Mm |
| Highlight: | medical lcd screen,medical grade display |
||
New and original LD750DGN-FKH1 LG Display a-Si TFT-LCD ,75 inch, 3840×2160 for Medical Imaging
| Panel Model | LD750DGN-FKH1 |
|---|---|
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,75 inch, 3840×2160 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LD750DGN (FK)(H1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Dot Resolution | 3840(RGB)×2160 (UHD) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 59 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.14325×0.42975 mm (H×V) |
| Pixel Pitch | 0.4296×0.4296 mm (H×V) |
| Weight | 27.6/30.5Kgs (Typ./Max.) |
| Surface | Antiglare (Haze 3%), Hard coating (2H) |
| Active Area | 1649.66×927.936 mm (H×V) |
| Bezel Area | 1651.6×930 mm (H×V) |
| Outline Dimension | 1675.2×953.6 mm (H×V) |
| Outline Depth | 86.2 (Max.) mm |
| Landscape or Portrait | Landscape / Portrait |
| Touch Panel | Without |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4long-term partner:
* Products are sold to more than 20 countries.
5Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
| Display Mode | IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 3000 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
| Display Color | 1.07B (10-bit) |
| Color Gamut | 69% NTSC (CIE1931) |
| Response Time | 8 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.279; Wy:0.292 |
| White Variation | 1.25 (Max.)(9 points) |
| Sunlight Readable | Y |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 607.0W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LC470DUJ-SGE1 | LG Display | 47" | 1920×1080 |
| LM230WF5-TJF1 | LG Display | 23.0" | 1920×1080 |
| LC420DUJ-FFE1 | LG Display | 42" | 1920×1080 |
| LH530WX1-SH02 | LG Display | 5.3" | 720×1280 |
| LH500WX2-SH01 | LG Display | 5.0" | 720×1280 |
| LH176J03-SH02 | LG Display | 1.8" | 220×176 |
| LH176J04-TH01 | LG Display | 1.8" | 176×220 |
| LM230WF5-TJC3 | LG Display | 23.0" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information

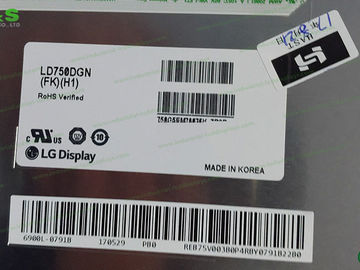

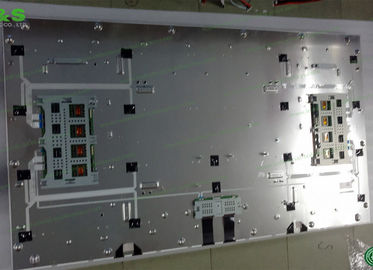

LD750DGN-FKH1 pictures
