Product Details:
|
| Active Area: | 285.696×214.272 Mm | Surface: | Hard Coating (2H) |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Response Time: | 25 (Max.)(Tr) |
| Viewing Angle: | 50/50/20/35 (Typ.)(CR≥10) (L/R/U/D) | Display Mode: | TN, Normally White, Transmissive |
| High Light: | nec tft lcd,nec lcd screen |
||
Normally White NL10276AC28-01E 14.1 inch NEC LCD Panel with 285.696×214.272 mm Active Area
NL10276AC28-01E Detail
| Panel Brand : | NEC |
| Panel Model : | NL10276AC28-01E |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 14.1 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 285.696×214.272 mm |
| Outline : | 330×255×20.5 mm |
| Surface : | Hard coating (2H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 150:1 (Typ.) |
| Display Colors : | Full color , CIE1931 40% |
| Response Time : | 25 (Max.)(Tr) |
| Viewing Angle : | 50/50/20/35 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 2 pcs CCFL Embedded (Inverter) |
| Signal Interface : | Analog RGB , 41 pins |
| Input Voltage : | 12.0V (Typ.) |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
| Panel Size : | 14.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.093×0.279 mm (H×V) |
| Pixel Pitch : | 0.279×0.279 mm (H×V) |
| Weight : | 1.22/1.30Kgs (Typ./Max.) |
| Surface : | Hard coating (2H) |
| Active Area : | 285.696×214.272 mm (H×V) |
| Bezel Area : | 290.4×219.0 mm (H×V) |
| Outline Dimension : | 330×255 mm (H×V) |
| Outline Depth : | 19.0/20.5 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED0970C1 | E Ink | 9.7" | 1200×825 |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

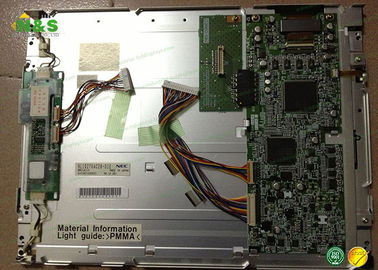

NL10276AC28-01E NEC LCD Panel Picture
